Why is there a chip shortage?

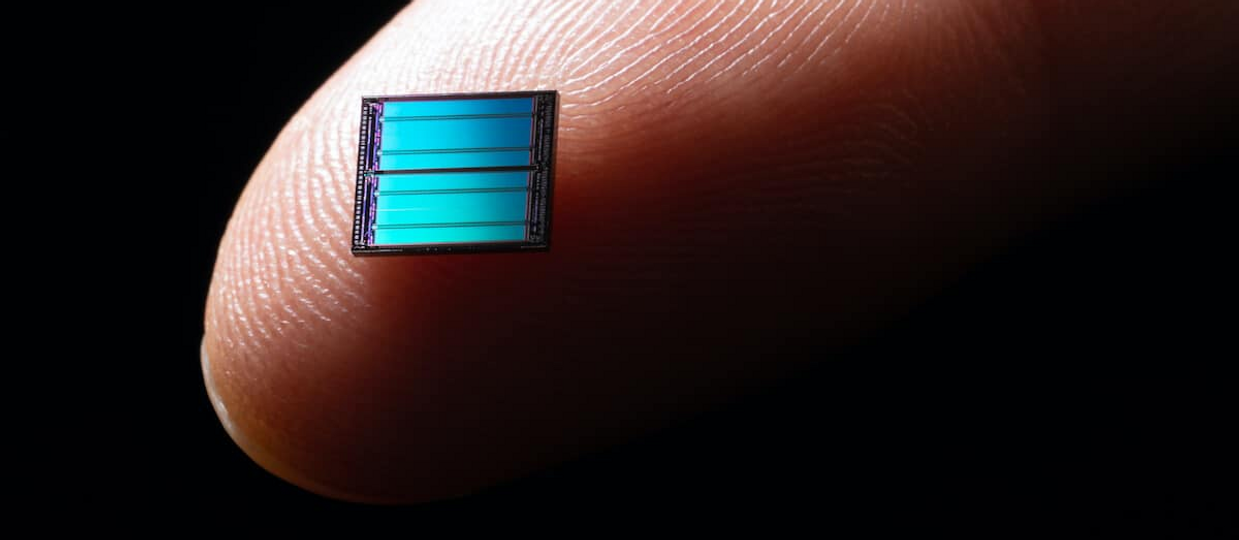

Cover Image for Why is there a chip shortage?
Pravin Kumar
Pravin Kumar

Historians will probably spend decades picking apart the consequences of the COVID-19 epidemic. But the shortage of chips that it's caused will be long over by then. A variety of analysts agree that the most problematic shortages will begin to ease in the third or fourth quarter of 2021, though it could take much of 2022 for the resulting chips to work their way through the supply chain to products. The supply relief will not be coming from the big, national investments in the works right now by South Korea, the United States, and Europe but from older chip fabs and foundries running processes far from the cutting edge and on comparatively small silicon wafers.

Before we get into how the shortage will end, it's worth summing up how it began. With panic, lockdowns, and general uncertainty rolling across the globe, automakers cancelled orders. However, those conditions meant a big fraction of the workforce recreated the office at home, purchasing computers, monitors, and other equipment. At the same time entire school systems switched to virtual learning via laptops and tablets. And more time at home also meant more spending on home entertainment, such as TVs and game consoles. These, the 5G rollout, and continued growth in cloud computing quickly hoovered up the capacity automakers had unceremoniously freed. By the time car makers realized people still wanted to buy their goods they found themselves at the back of the line for the chips they needed.

IDC The auto industry is a relatively small chip end-user, but it's growing fast.

At $39.5 billion, the auto industry makes up less than 9 percent of chip demand by revenue, according to market research firm IDC. That figure is set to increase by about 10 percent per year to 2025. However, the auto industry— which employs more than 10 million people globally— is something both consumers and politicians are acutely sensitive to, especially in the United States and Europe.

Chips for the automotive sector are made using processes intended to meet safety criteria that are different from those meant for other industries. But they are still fabricated on the same production lines as the analog ICs, power management chips, display drivers, microcontrollers, and sensors that go in everything else. “The common denominator is the process technology is 40 nanometers and older," says Mario Morales, vice president, enabling technologies and semiconductors at IDC.

Cars rely on chips made using mature—40-nanometer and older—manufacturing processes. Those processes make up most of the installed capacity.

This chip manufacturing technology was last cutting edge 15 years ago or earlier, lines producing chips at these old nodes represent a full 54 percent of installed capacity, according to IDC. Today these old nodes are typically used on 200-mm wafers of silicon. To reduce cost, the industry began moving to 300-mm wafers in 2000, but much of the old 200-mm infrastructure continued and even expanded.

Despite the auto industry's desperation, there's no great rush to build new 200-mm fabs. “The return on investment just isn't there," says Morales. What's more there are already many legacy-node plants in China that are not operating efficiently right now, but “at some point, they will," he says, further reducing the incentive to build new fabs. According to the chip manufacturing equipment industry association SEMI, the number of 200-mm fabs will go from 212 in 2020 to 222 in 2022, about half the expected increase of the more profitable 300-mm fabs.

There are few new 200-mm fabs...

...but companies are investing in equipping the old ones.

More than 40 companies will increase capacity by more than 750,000 wafers-per-month from the beginning of 2020 to the end of 2022. The long-term trend to the end of 2024 is for a 17 percent increase in capacity for 200-mm facilities. Spending on equipment for these fabs is set to rise to $4.6 billion in 2021 after crossing the $3-billion mark in 2020 for the first time in years, SEMI says. But then spending will drop back to $4 billion in 2022. In comparison, spending to equip 300-mm fabs is expected to hit $78-billion in 2021.

The chip shortage is happening simultaneously with national and regional efforts to boost advanced logic chip manufacturing. South Korea announced a push worth $450-billion over ten years, the United States is pushing legislation worth $52 billion, and the EU could plow up to $160-billion into its semiconductor sector. Chipmakers were already on a spending spree. Globally, capital equipment for semiconductor production grew 56 percent year-on-year through April 2021, according to SEMI. SEMI's 3 June 2021 World Fab Forecast indicates that 10 new 300-mm fabs will start operation in 2021 with 14 more coming up in 2022.

“The push for building IC capacity around the world will certainly drive fab investment of the current decade to a new high," says C hristian Gregor Dieseldorff, senior principal for semiconductors at SEMI. “We expect to see record spending and more new fab announcements in the next few years."

One potential hiccup on the road to ending the shortage is that some of the skyrocketing demand appears to be from customers that are double-ordering to bulk up on inventory, says Jim Feldhan, president of Semico Research. “I don't know of any product that needs twice the amount of analog" as the year before, he says. But manufacturers “don't want a 12-cent part to hold up a 4K television," so they're stocking up.

The auto industry needs to do more than just stock up, according to Bharat Kapoor, lead partner, Americas, in the high-tech practice of global strategy and management consulting firm, Kearney. To keep future shortages at bay, the chip industry and auto executives need a more direct connection going forward so signals about supply and demand are clearer, he says.
